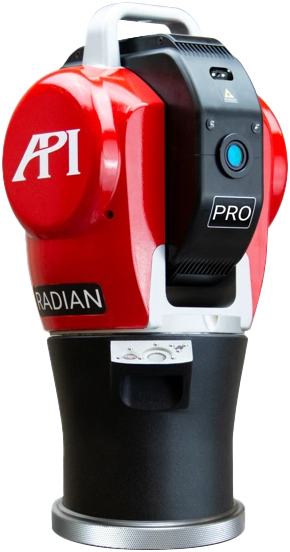

PRO IFM/ADM tracker with unrivaled accuracy and comprehensive functionality including automated 6DOF tracking

PLUS provides extended CORE tracker functionality with hand-held tactile & laser scanning probes and offers 6DOF tracking.

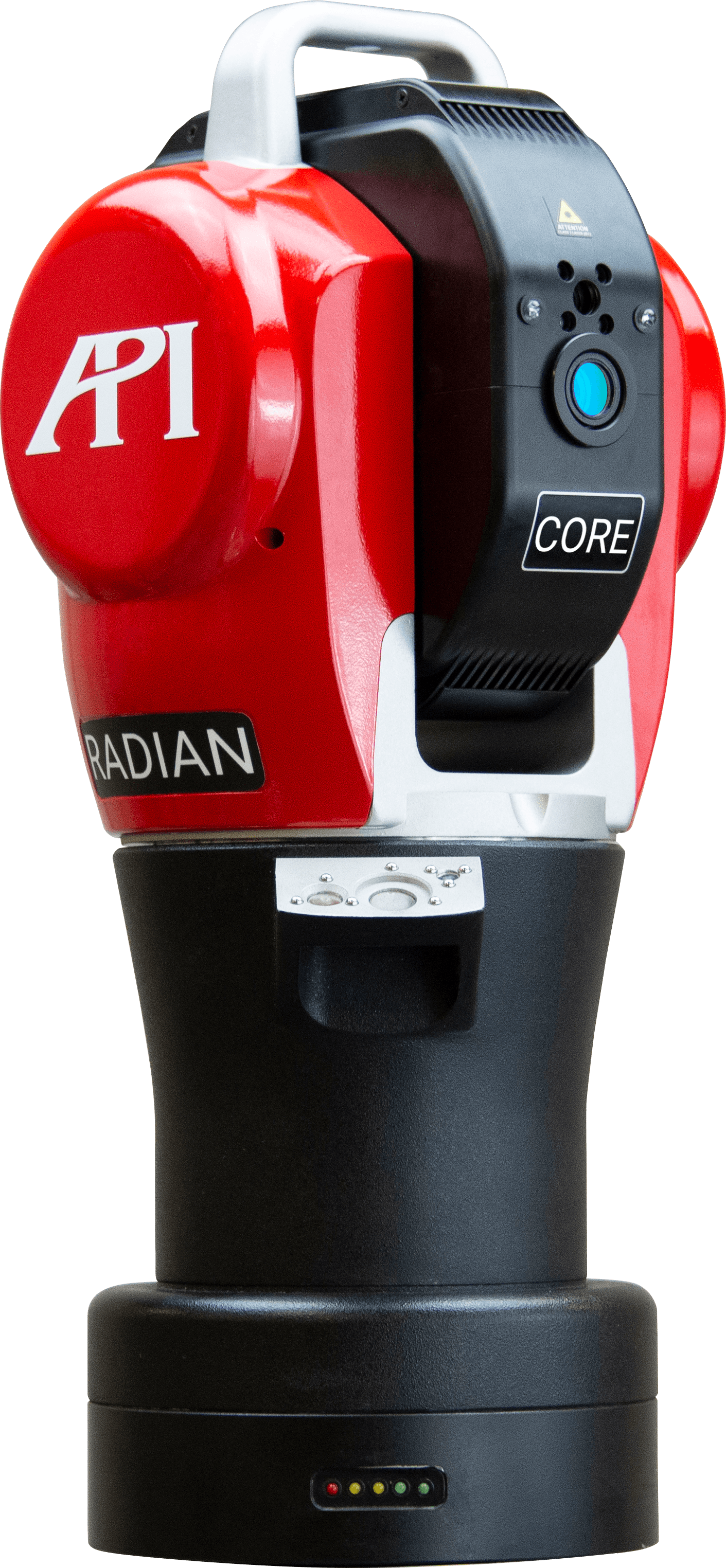

CORE offers economical SMR tracker functionality with benchmark accuracy in 50m and 80m ADM models.

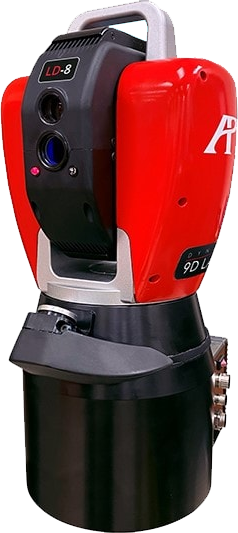

The Fastest, Most Accurate Interferometry-Based Non-Contact Measurement System in the World
DYNAMIC 9D LADAR provides micron-level resolution while eliminating issues associated with surface reflectivity, slow data acquisition speeds, limited accuracies, restrictive incident angles, and susceptibility to production environment noise.
Dynamic 9D LADAR is a breakthrough technology, representing the fastest, most accurate non-contact measurement system in the world. 9D LADAR’s rapid, accurate data collection in real-time is set to revolutionize automated in-line production measurements and obsolete exiting conventional Laser Radar systems that require large sample averaging to obtain reasonable accuracy, effectively slowing data acquisition rates.

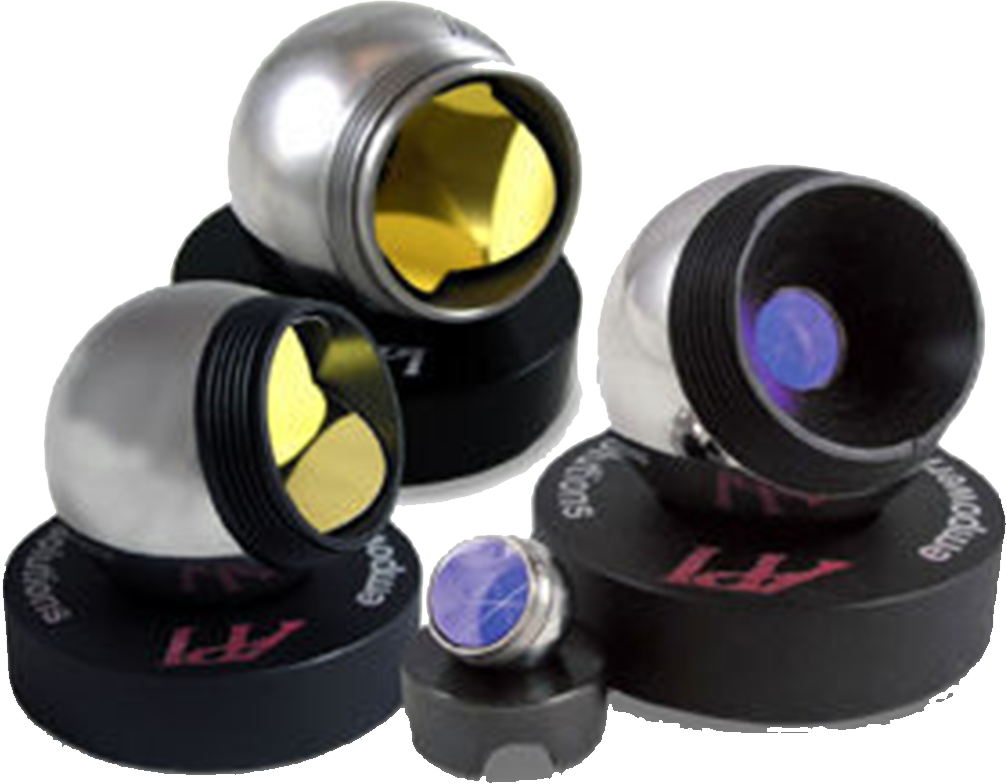

API’s break resistant Spherically Mounted Retroreflectors (SMR) are constructed with a one piece optic eliminating risks associated with glass panels shifting, separating or fracturing and can track over 80m with optical centering accuracy down to ± 2.5 microns offering high accuracy line of sight measurement.

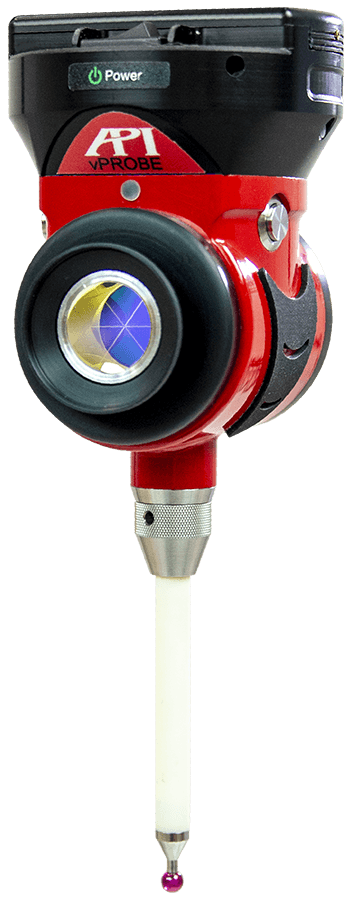

The API vProbe is a hand-held wireless probe for measuring intricate features outside of tracker line of site providing fast and accurate manual measurements.The vProbe with laser tracker can provide more versatility than a portable arm CMM and inherently more suitable for larger parts.

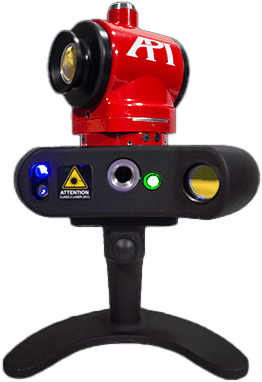

The API iScan 3D laser line scanner offers fast, accurate and productive solution to generate component point-clouds with a tracker at 200,000 points/second. The iScan is light weight and provides effortless scanning functionality.

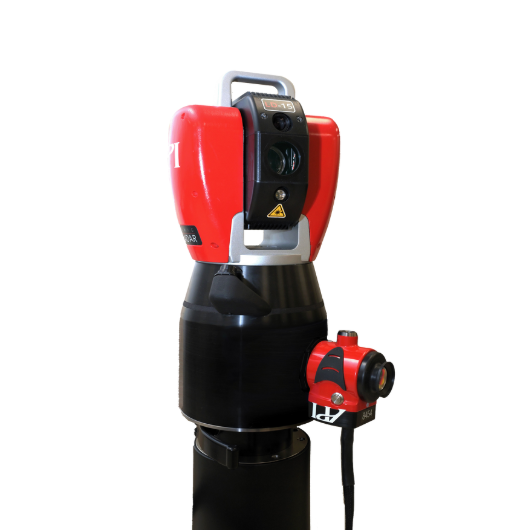

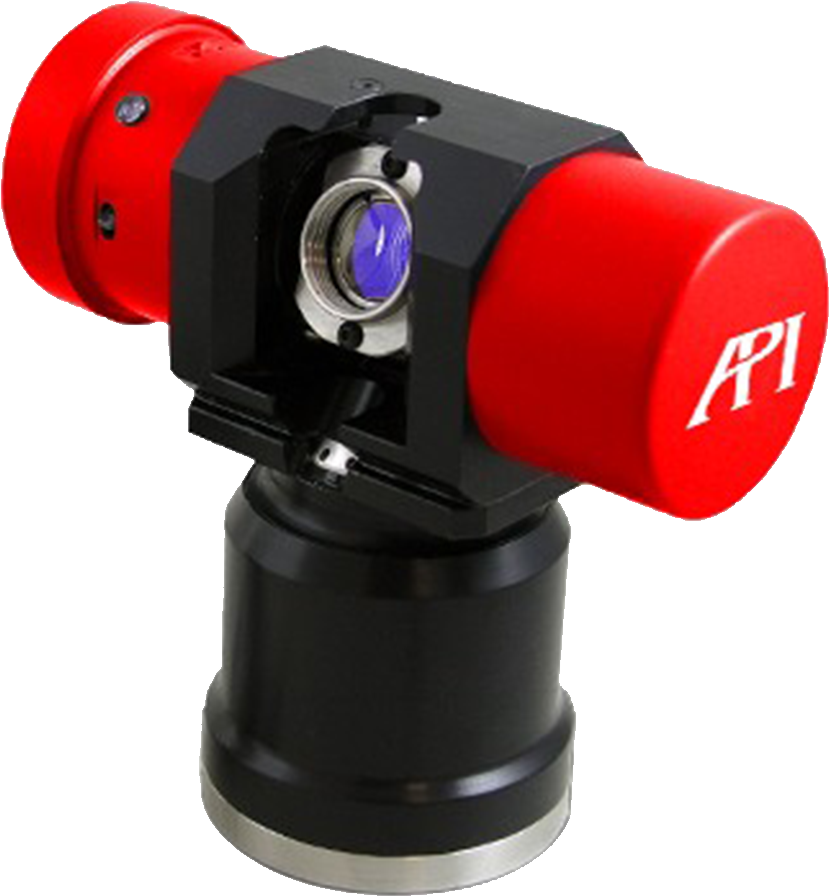

Self-orienting motorized 360° rotation SMR locks onto laser tracker and automatically orientates to laser beam for automated tracking of machines.

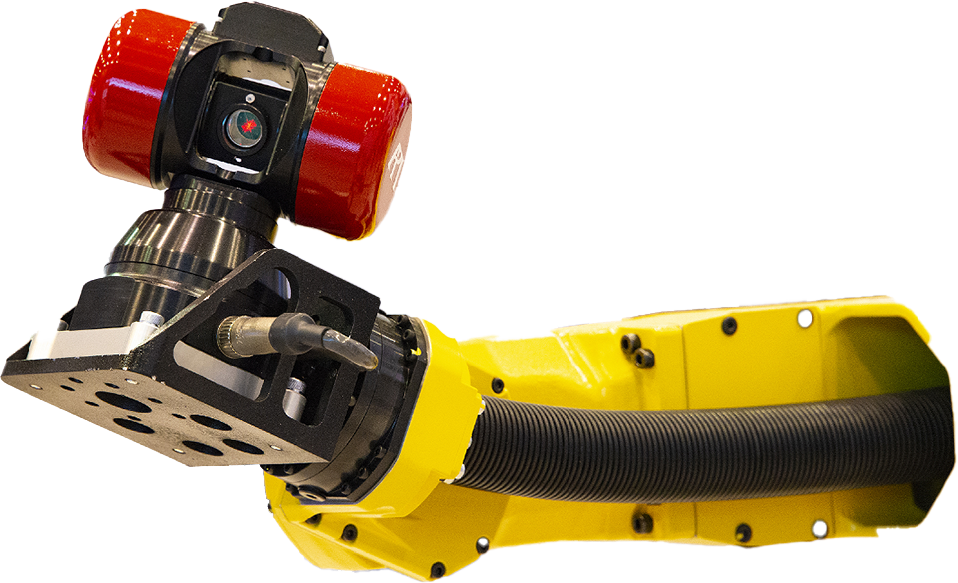

API’s Smart Track Sensor provides dynamic accuracy using automatic 6DoF measurement to determine tracked point position in real-time revealing true position and orientation. This next generation sensor is essential for robotic calibration.
